StackGP Demo

This is a basic demo demonstrating how you can use StackGP to search for a model with a known form (\(x^2/y\)).

---

First we need to load in the necessary packages

import StackGP as sgp
import numpy as np

Define Function

Here we define the function which we will try to rediscover.

#Define demo function to generate data
def demoFunc(x,y):
    return x**2/y

Data Generation

Now we can generate some data that we will use in the search.

#Generate data
inputData=np.array([np.random.randint(1,10,10),np.random.randint(1,10,10)])
response=demoFunc(inputData[0],inputData[1])

GP Search

Here we supply the input data and response to StackGP’s evolve function to search for a model that fits the data.

#Generate models
models=sgp.evolve(inputData,response)

Results

Now we can visualize the Pareto front plot of the evolved models to see how they perform with respect to accuracy and complexity.

#View model population quality
sgp.plotModels(models)

We can use the printGPModel function to print the best model in a readable format. We can see that the correct model form was found.

#View best model
sgp.printGPModel(models[0])

\[\displaystyle \frac{1.0 x_{0}^{2}}{x_{1}} + 1.84213875231584 \cdot 10^{-15}\]

We can also plot a comparison between predicted and observed values. Since the model fits the data perfectly, we only see the predicted points in the plot since they cover the observed points.

#Compare best model prediction to true data
sgp.plotModelResponseComparison(models[0],inputData,response)

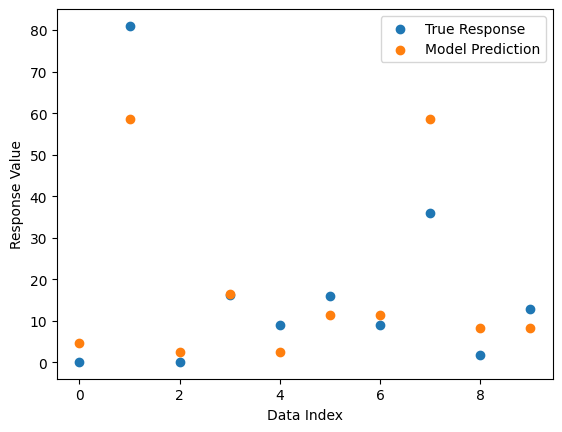

If we pick a low quality model from the population, we can see the difference.

#Compare another model to true data
sgp.plotModelResponseComparison(models[100],inputData,response)
