StackGP.optimizeModel

StackGP.optimizeModel(model, inputData, responseData, bounds=None, **kwargs)

optimizeModel is a StackGP function that optimizes the numeric constants in a StackGP model. It utilizes scipy.optimize.differential_evolution under the hood and can use any optional arguments available for scipy’s differential evolution.

The function has 3 required arguments: a model, an inputData data set, and the responseData dataset.

and has 1 optional arguments, bounds

The arguments are described below:

• model: The model to optimize.

• inputData: The input data set.

• responseData: The response vector.

• bounds: The bounds for the search space. The default setting is bounds=None.

---

First we need to load in the necessary packages

import StackGP as sgp

Overview

Optimizing an Evolved Model

Here we generate a random benchmark problem with 5 features and 100 data points which we will use for training.

inputData, response, targetModel = sgp.generateRandomBenchmark(numVars=5, numSamples=100, maxLength=20)
sgp.printGPModel(targetModel)

\[\displaystyle \frac{1}{x_{2} + e^{x_{4}} + 3.14159265358979}\]

Here we use the evolve function to train a population of models.

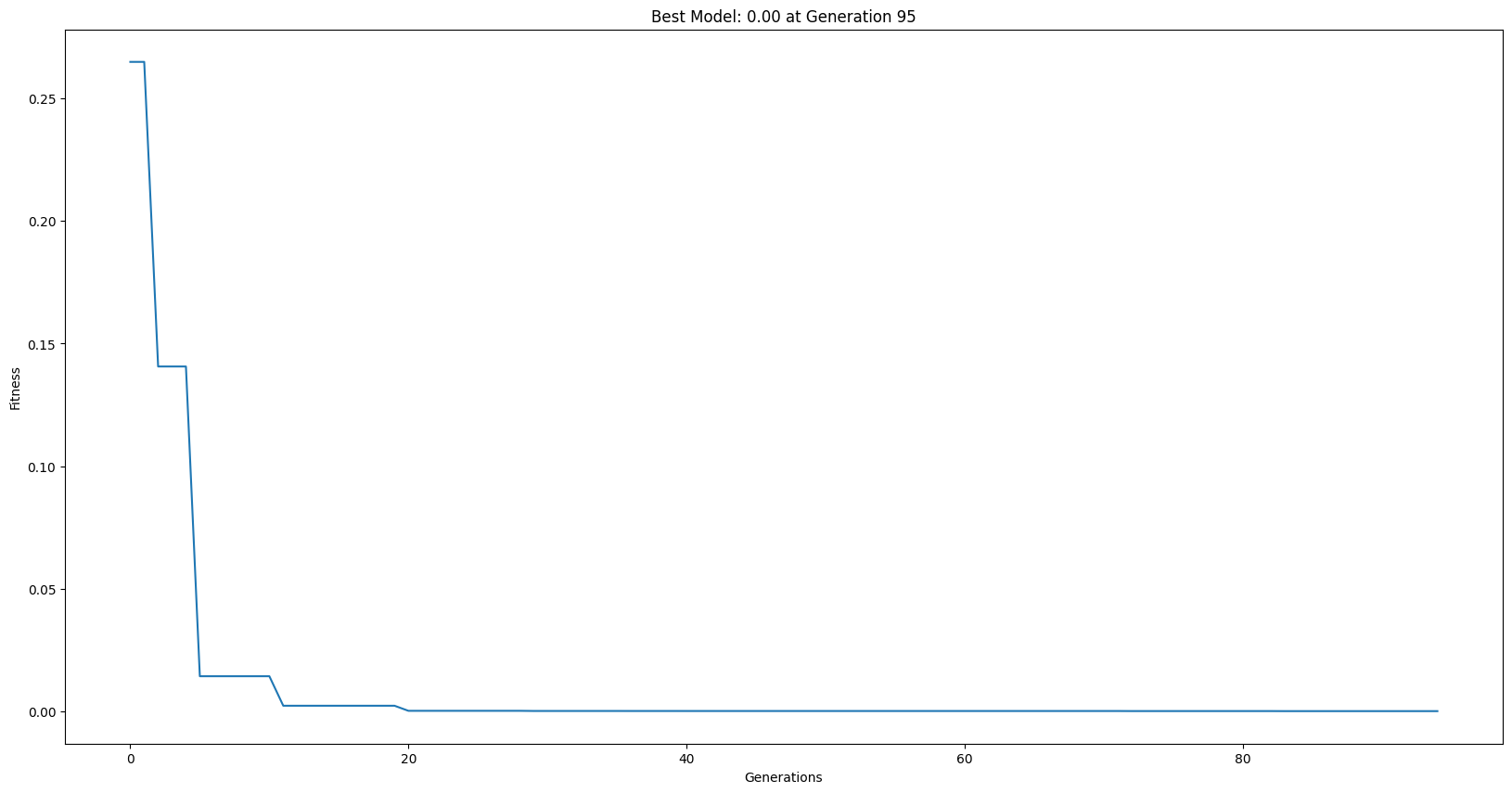

models = sgp.evolve(inputData, response, liveTracking=True, generations=100)

Here we look at the most fit model evolved.

sgp.printGPModel(models[0])

\[\displaystyle 0.000417167335294089 + \frac{0.995499555390802}{x_{2} + e^{x_{4}} + 3.12955739181087}\]

Now we optimize the constants in that model using the optimizeModel function.

optimizedModel = sgp.optimizeModel(models[0], inputData, response)

We can see the new optimized model using the printGPModel function.

sgp.printGPModel(optimizedModel)

\[\displaystyle -7.40111751662502 \cdot 10^{-16} + \frac{1.00000000000001}{x_{2} + e^{x_{4}} + 3.14159265358982}\]

---

---

Options

This section showcases how each of the different arguments can be used with the optimizeModel function.

---

bounds: Controlling the search bounds

We can control the range of values searched for each parameter using bounds.

In this example, we start with a specific model that does not quite fit the generated data below.

import numpy as np
model = [np.array([sgp.sub, 'pop', 'pop', sgp.sub, 'pop', sgp.inv]), [3.12, 20.2, sgp.variableSelect(0)], []]
inputData = [[0.33427053, 0.89838617, 0.63117277, 0.29983736, 0.86591389, 0.75842272, 0.67449836, 0.42196129, 0.72878102, 0.90504893]]
responseData = [-0.06942813, -0.06681142, -0.06802588, -0.0695945 , -0.06695669, -0.06744208, -0.06782598, -0.06900799, -0.06757718, -0.0667817 ]
sgp.printGPModel(model)

\[\displaystyle \frac{1}{- x_{0} - 17.08}\]

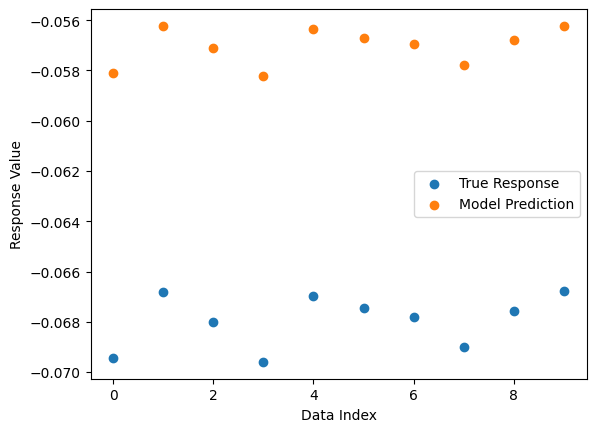

We can see the model fit below compared to the real data.

sgp.plotModelResponseComparison(model, inputData, responseData)

Now we can fit the model constants to the data using the optimizeModel function. We will use the default bounds=None option so we don’t have to specify a range to search within.

newModel = sgp.optimizeModel(model, inputData, responseData, bounds=None)
sgp.printGPModel(newModel)

\[\displaystyle \frac{1}{- x_{0} - 14.0691141724294}\]

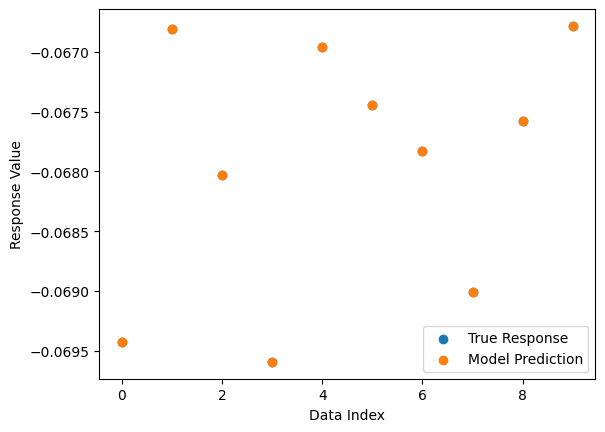

Now we can see that the new model perfectly fits the data.

sgp.plotModelResponseComparison(newModel, inputData, responseData)

Now we can change the bounds to search within (0,3.12) for the first paramter and (20,30) for the second paramters. These bounds do not include the best fit parameters, so we won’t be able to find a perfect fit.

altModel = sgp.optimizeModel(model, inputData, responseData, bounds=[(0, 3.12), (20, 30)])
sgp.printGPModel(altModel)

\[\displaystyle \frac{1}{- x_{0} - 16.88}\]

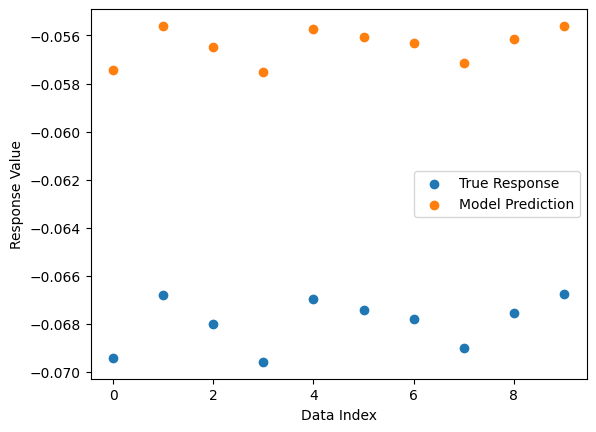

Below we can see the new fit from the optimization with incorrect bounds. The fit is clearly not perfect.

sgp.plotModelResponseComparison(altModel, inputData, responseData)

---

---

Examples

This section some neat examples using the optimizeModel function.

---

Interesting example title

Here we generate a benchmark with a lot of constants that will be challenging to learn.

inputData, response, targetModel = sgp.generateRandomBenchmark(opsChoices=[sgp.add, sgp.mult], numVars = 3, maxLength=20)
sgp.printGPModel(targetModel)

\[\displaystyle 3.14159265358979 x_{0}^{2} x_{2} \left(9.86960440108936 x_{2} \left(29.190480630438 x_{0} + 29.190480630438 x_{1} \left(x_{1} + 2.71828182845905\right) + x_{1} - 1\right) + 9.86960440108936 x_{2} + 26.8283662975606\right) + 4.14159265358979\]

Now we train models using the parallelEvolve function.

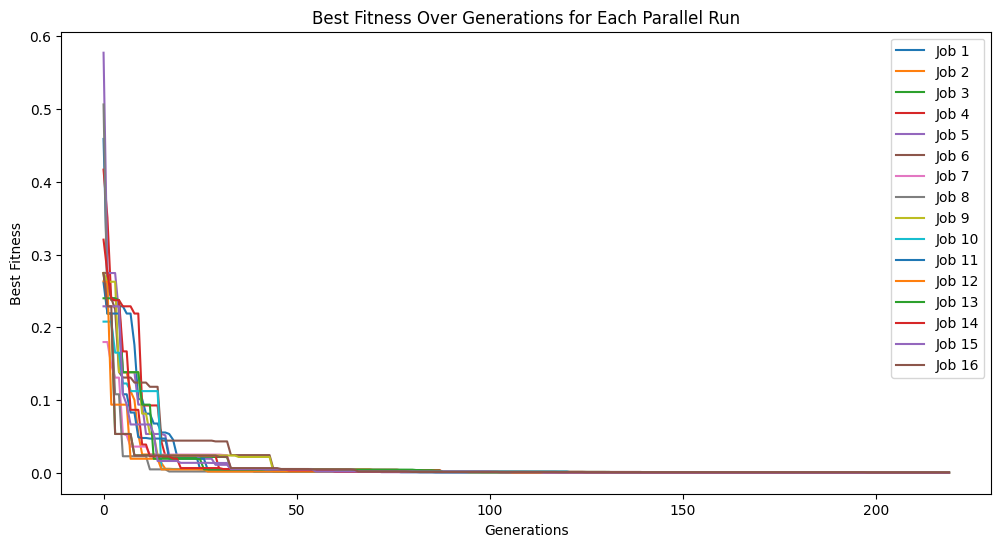

models = sgp.parallelEvolve(inputData, response, liveTracking=True, tracking=True, generations=10, cascades=True, cascadeCount=20, exchangeCount=10)

We can see the generated model below.

sgp.printGPModel(models[0])

\[\displaystyle 916.227787739335 x_{0}^{2} x_{2}^{2} \left(x_{1} + \sqrt[4]{x_{0}^{2} + \sqrt{x_{1}}}\right)^{2} + 4.70383975341526 x_{0} \left(x_{0}^{2} + 3.14159265358979\right) + 0.999663442272506 x_{1} - 0.894229602270923\]

The predictions are pretty good but not perfect.

sgp.plotModelResponseComparison(models[0], inputData, response)

Here we optimize the model’s constants. Since there are a lot of constants, this process is not fast. This is why models are not automatically optimzed during the search process.

newModel = sgp.optimizeModel(models[0], inputData, response)
sgp.printGPModel(newModel)

\[\displaystyle 917.015092629465 x_{0}^{2} x_{2}^{2} \left(x_{1} + \sqrt[4]{x_{0}^{2} + \sqrt{x_{1}}}\right)^{2} + 4.20276504597127 x_{0} \left(x_{0}^{2} + 3.0780557978853\right) + 1.00052229392472 x_{1} + 0.0415203076961662\]

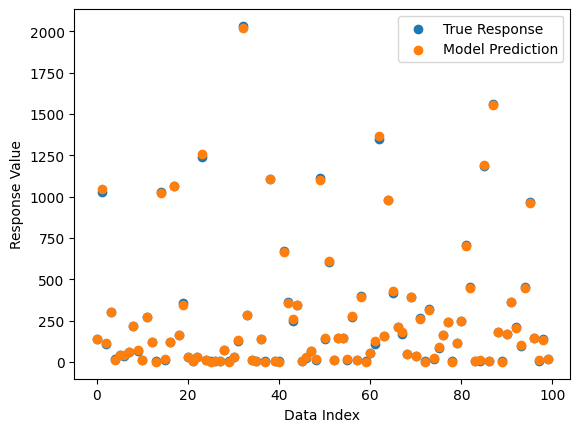

We can see that while this model is still an approximation, the predictions get a little better.

sgp.plotModelResponseComparison(newModel, inputData, response)
